Gotharman's Moog Voyager Modular September 2010
Click on the pictures to enlarge

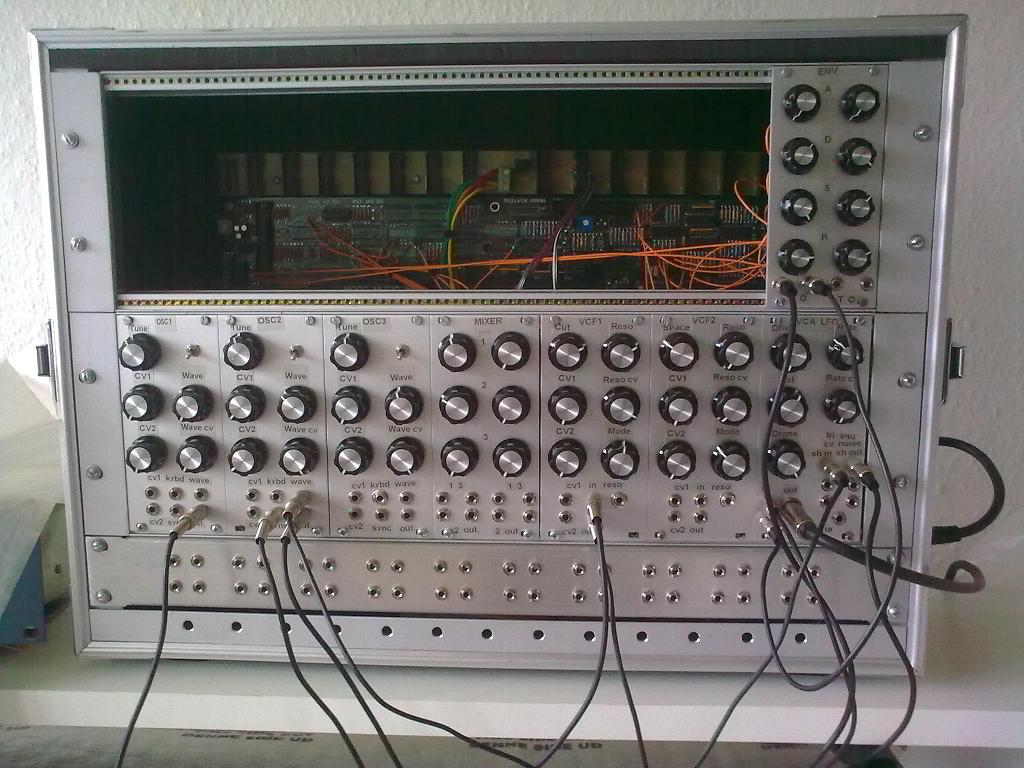

The voiceboard of a Moog Voyager Old School build in to a Modular World Eurorack case. Everything is connected to minijacks. The oscillators, mixers, filters and VCA are interconnected, when no jacks is plugged in.
It has a build in MIDI-CV/gate interface, that is always set to MIDI channel 2.
It has 4 extra VCA's and 2 inverters build in to the lower row of jacks.
There are room for some extra modules, and a standard eurorack powerboard is build-in.
Gotharman: "Damned, I wish I had a modular synth!!!"

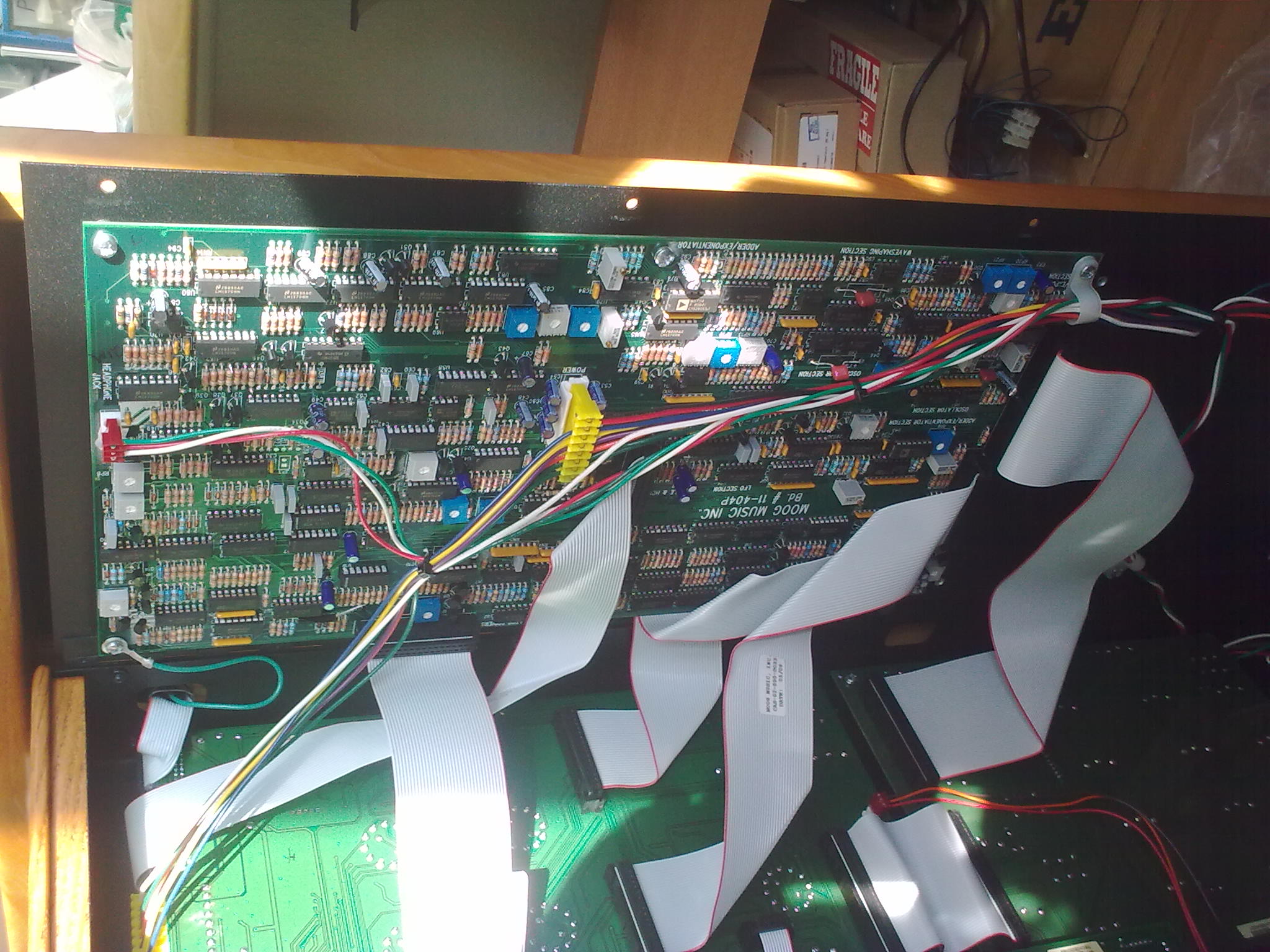

How big are the voiceboard in a Moog Voyager anyway???

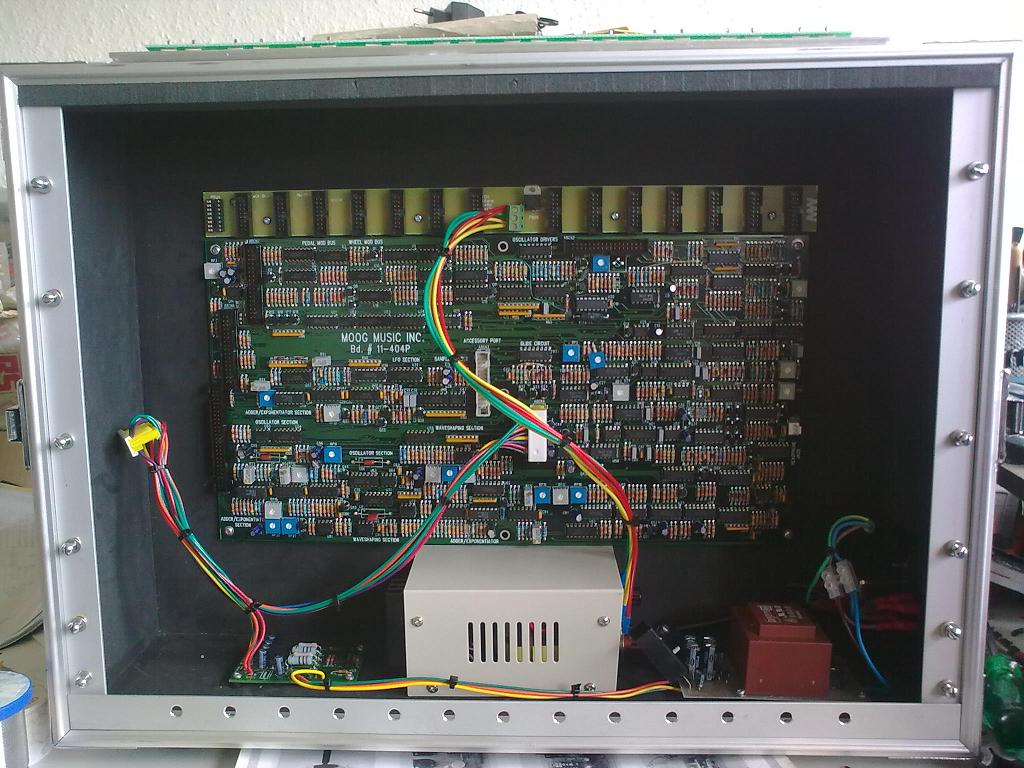

Would it fit into a Eurorack case from Modular World?
Find more info on the Modular World case, made by friends of Gotharman, by clicking on this picture:
Hmmm.... All those digital switches on the voiceboard doesn't really make me happy. But heck, we don't need them! We need MINIJACK CABLES!!! So let's cut'em out!

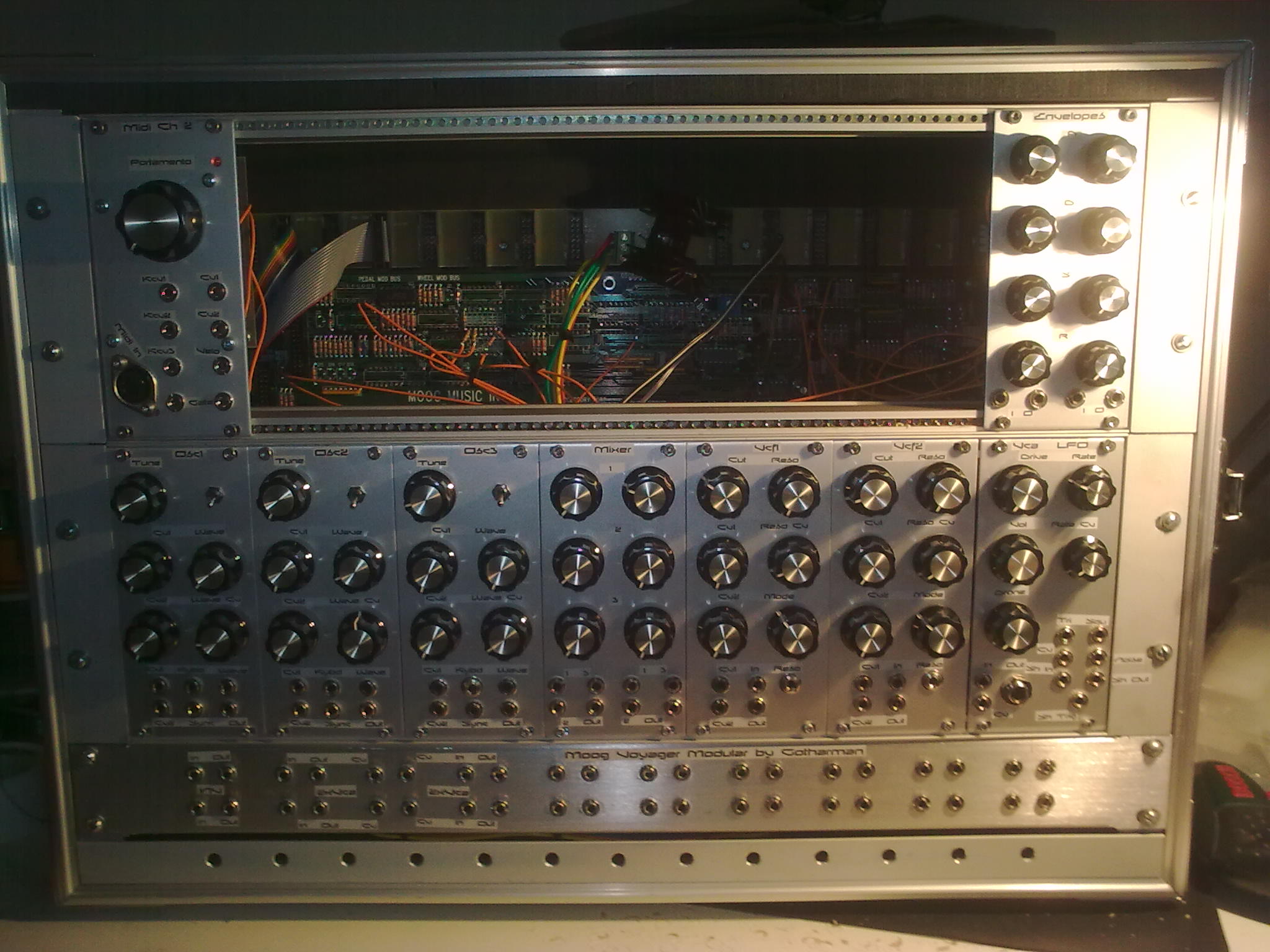

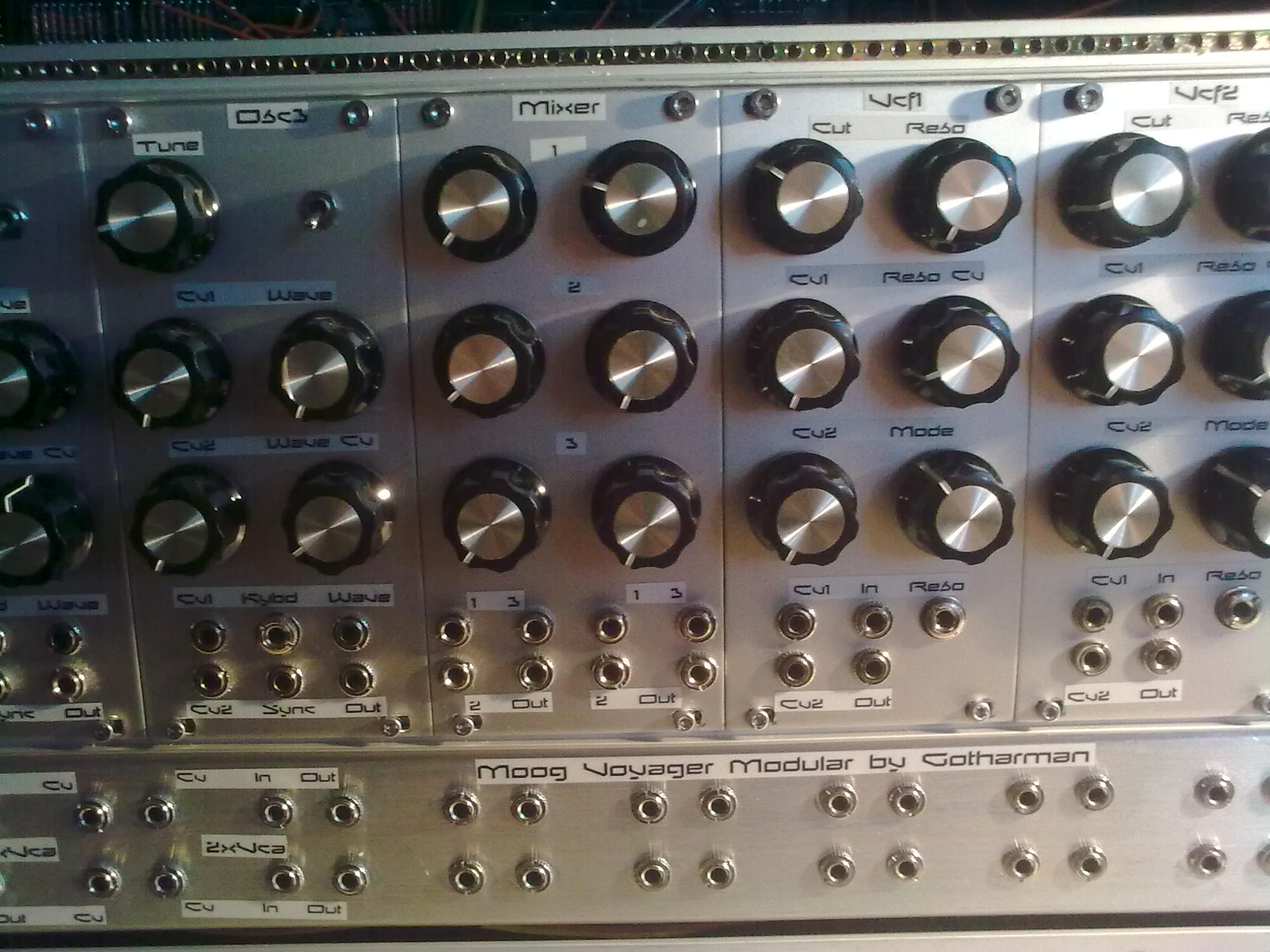

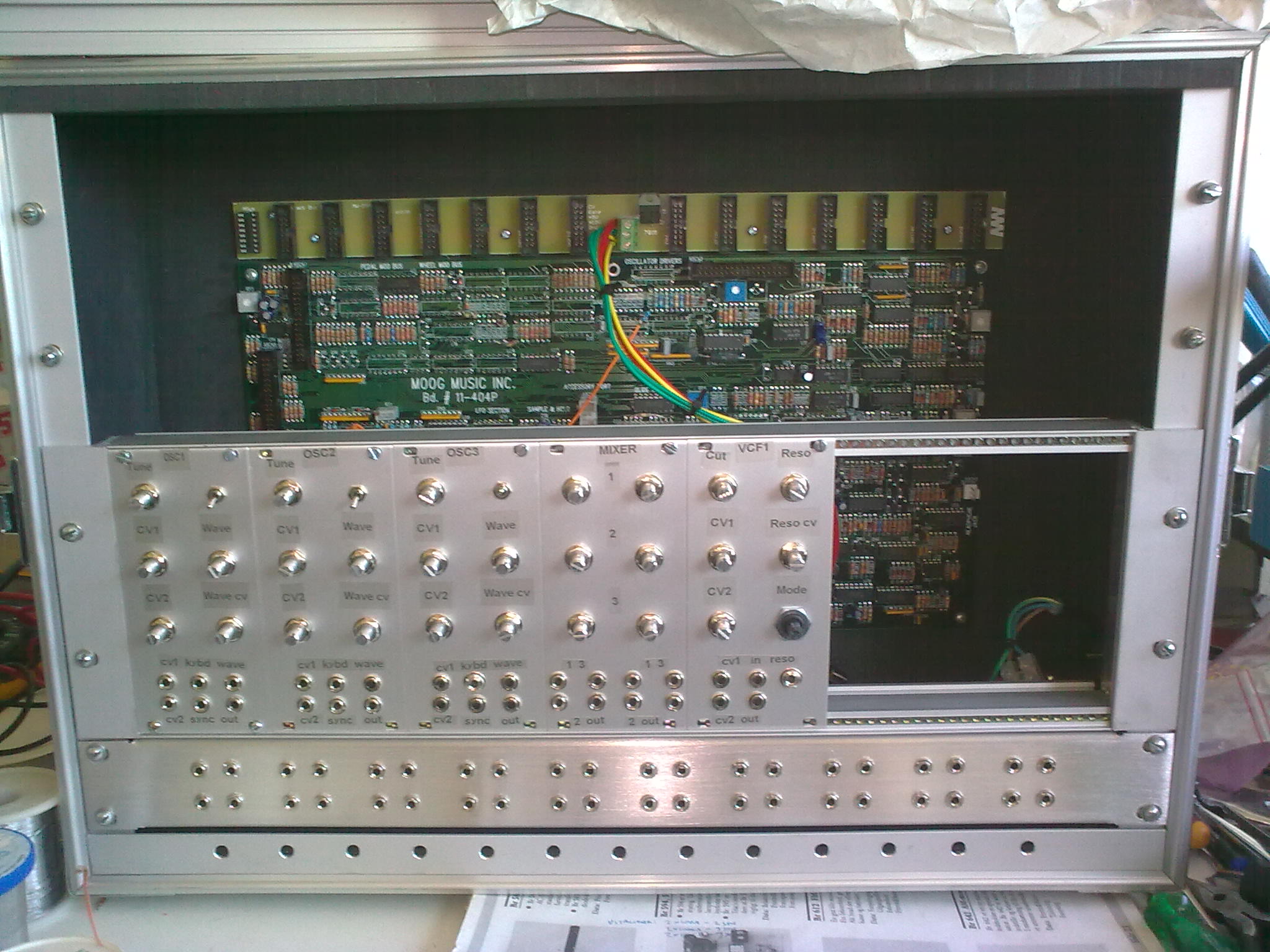

.... Some weekends later: The Voyager Modular
The empty space are for new Gotharman inventions! Stay tuned......
Some sound examples:
