-2 oscillators with each 16 different waveforms, which are all affected by pwm. Pitchable noise. Oscillator sync, FM and ringmodulator. Portamento.

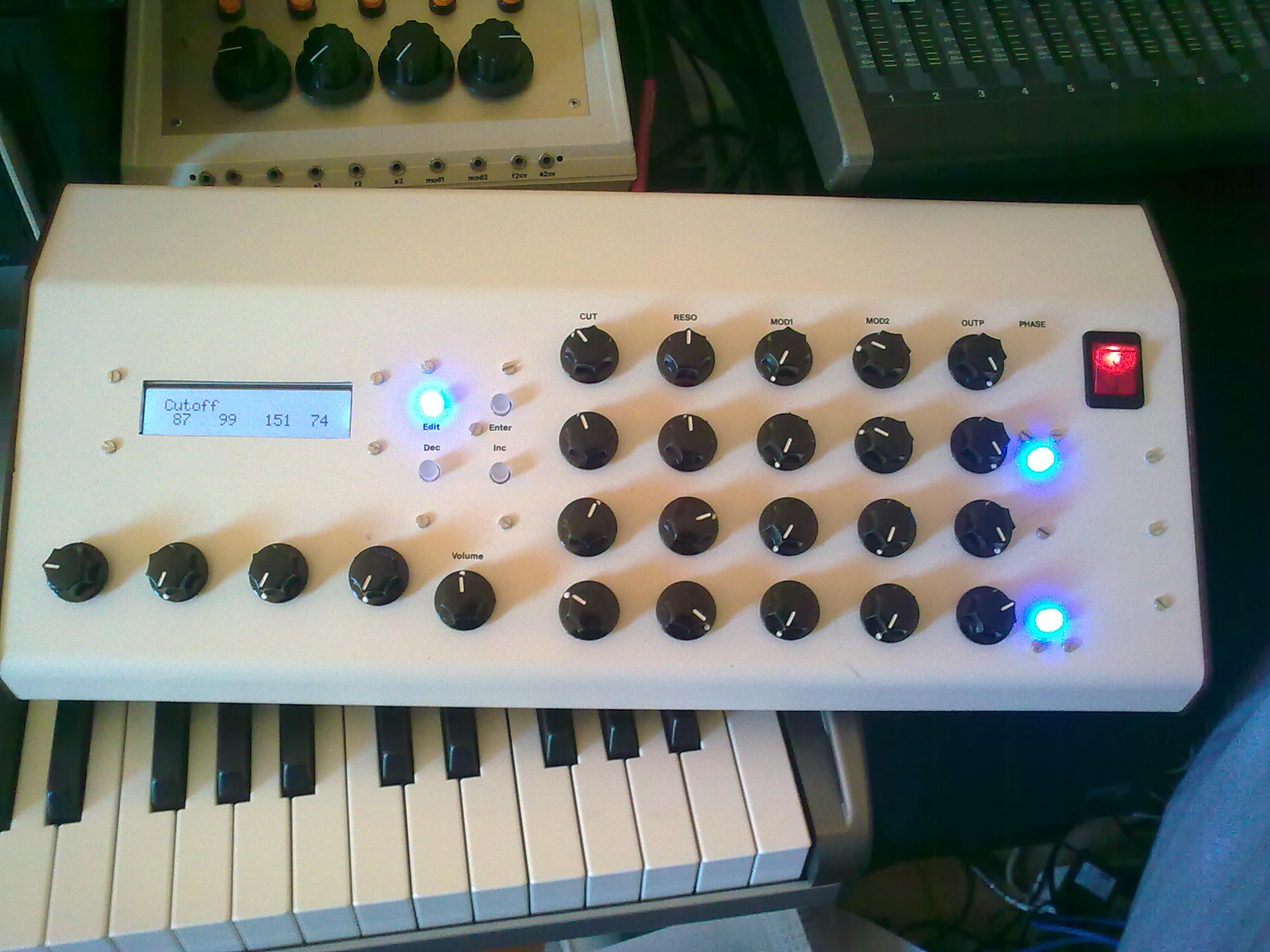

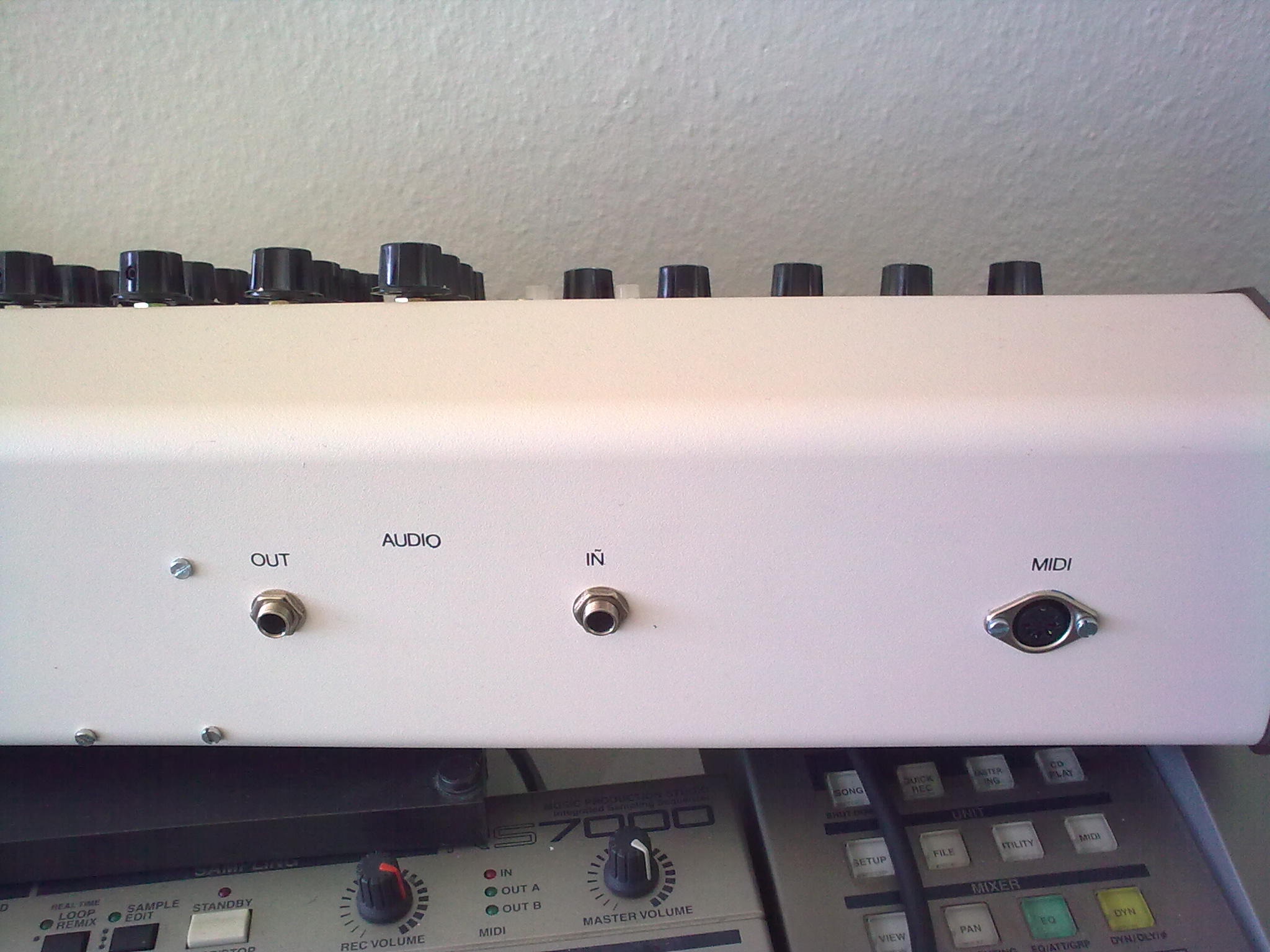

-4 x 24db lowpass ANALOGUE filters connected in parallel to each other. Each filter can be separately controlled, programmed and modulated. Possibility of inverting the output of 2 of the filters by 180 degrees, to create new strange sound-effects. Front panel controls: Filter 1-4 cutoff, reso, modulation source 1 amount, modulation source 2 amount, filter output levels. The external audio input pictured, was never activated, so it doesn't work.
-Modulation sources: Oscillator 2 can modulate oscillator 1 (FM) and the 4 filters (FxM). Other sources are: modulator1 (a 16 step step-modulator with glides and steps), modulator2 (a 16 step step-modulator with glides and steps), LFO1, LFO2, random generator 1, random generator 2, keyboard, velocity, midi-controller 1-17, 1 ADSR VCA envelope.
-Memory: 256 locations for storing sounds in EEPROM's - No back-up battery needed. All parameters can be edited and stored.
-MIDI data received (on selectable midi-channel): Note-on, Note-off, velocity, pitch-bend, controller 1-17.
LISTEN TO THE SPACE EAGLE:
A few demos
