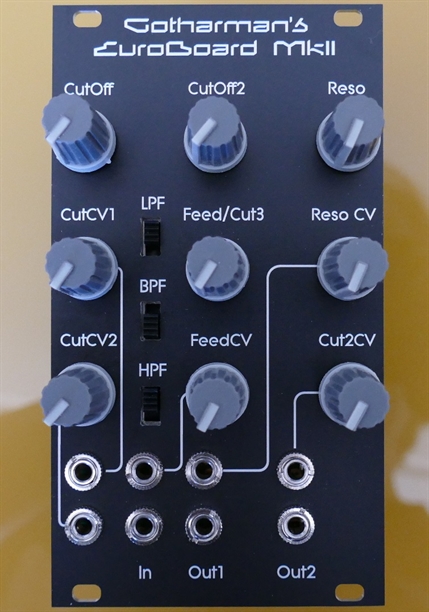

Gotharman's EuroBoard MkII
Eurorack module for Filter Boards
If you have some extra filter boards laying around, you can now put these to use in your eurorack system!
If you don't own any of the Gotharman filter board instruments, but just need some great Gotharman analog filters, you can now get these added to your eurorack system.
Just plug any filterboard into the connector on the back of the EuroBoard, and it will work right away. No setup, no worries. It is compatible with all the filterboards mentioned in the user manual.
And if you should, one day, feel the need for some other great filter flavours, the filterboard is super easy to replace.
Polarity of each parameter can be set by jumpers, to make it fit every filter board.
It is smaller than MkI: 14 hp vs. 22 hp.
Solid build with metal potentiometers.
Size: 14 hp
Depth: 40 mm with filter board included
Power draw +12V: 60mA (Approximately -depending on the installed filter board)
Power draw -12V: 60mA (Approximately -depending on the installed filter board)
Power draw +5V: 0mA
If you don't own any of the Gotharman filter board instruments, but just need some great Gotharman analog filters, you can now get these added to your eurorack system.
Just plug any filterboard into the connector on the back of the EuroBoard, and it will work right away. No setup, no worries. It is compatible with all the filterboards mentioned in the user manual.
And if you should, one day, feel the need for some other great filter flavours, the filterboard is super easy to replace.
Polarity of each parameter can be set by jumpers, to make it fit every filter board.
It is smaller than MkI: 14 hp vs. 22 hp.
Solid build with metal potentiometers.
Size: 14 hp
Depth: 40 mm with filter board included
Power draw +12V: 60mA (Approximately -depending on the installed filter board)
Power draw -12V: 60mA (Approximately -depending on the installed filter board)
Power draw +5V: 0mA
Intro offers: Get EuroBoard MkII together with a filter board, and save 10%:

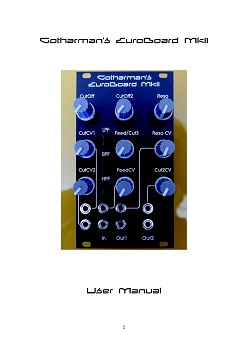

User Manual
EuroBoard MkII and VCF1 EUR 358,-
EuroBoard MkII and VCF2 EUR 394,-
EuroBoard MkII and VCF3 EUR 439,-
EuroBoard MkII and VCF4 EUR 376
EuroBoard MkII and VCF6 EUR 628,-
EuroBoard MkII and VCF7 EUR 493,-
EuroBoard MkII and VCF8 EUR 493,-
EuroBoard MkII and VCF9 EUR 385,-
EuroBoard MkII and VCF10 EUR 430,-
EuroBoard MkII and VCF11 EUR 430,-
EuroBoard MkII and VCF12 EUR 493,-
EuroBoard MkII and VCF13 EUR 430,-
EuroBoard MkII and VCF14 EUR 439,-
